What a dieline is
A dieline is a flat engineering drawing of a folding carton before it becomes a box. It shows every panel laid out in one plane, with every place the board will be cut, creased or perforated marked as a separate line type.
It serves two audiences at once. For your designer it is the map that says where each panel begins and ends, so artwork lands on the right face. For the converter it is the specification from which a physical cutting tool is made.
That dual role is why a dieline is not decorative and cannot be approximated. The same file drives both the artwork and the steel that cuts the board, so a line moved by a millimetre in the design file is a millimetre of difference in the finished carton.
This guide explains what the lines mean and how the tool is made. What we need in a file you send us is a separate question, answered in the artwork requirements for printing.
The line types and what each one does
Every dieline uses these conventions. Colours vary between suppliers; the meanings do not.
| Line | Usually drawn as | What the machine does | Common error |
|---|---|---|---|
| Cut | Solid line | Steel rule cuts fully through the board | Artwork stopping exactly on it instead of bleeding past |
| Crease | Dashed line | A blunt rule presses a fold channel without cutting | Placing a barcode or emboss across it |
| Perforation | Dash-dot line | Intermittent cuts so the board tears cleanly by hand | Using it where a full cut was intended |
| Bleed | Outer offset line | Nothing; it marks where artwork must extend to | Building artwork only to the cut line |
| Safe area | Inner offset line | Nothing; it marks where live copy must stay inside | Placing legal type outside it |
| Glue flap | Labelled panel | Receives adhesive and bonds to the opposite panel | Printing important artwork on it |
| Window | Solid line, own layer | Cut out, then patched with film if specified | Merging it with the main cut layer |
Keep each of these on its own named layer. A merged cut and window layer produces a tool that cuts the window as an outer edge, which scraps the run.
How the physical die is made
The tool is called a steel rule die, and it is closer to a giant cookie cutter than to anything digital.
A sheet of plywood is laser-cut with narrow slots following your dieline exactly. Strips of hardened steel rule are then bent to shape by hand or machine and pressed into those slots. Cutting rule has a sharp edge; creasing rule is blunt and slightly shorter, so it presses rather than severs. Rubber ejection foam is glued alongside the rules to push the board back off the tool after each strike.
The finished die sits in a press, and sheets of printed board are fed under it. Each strike cuts and creases one or more cartons at once. That is why a die is a one-time cost that reorders do not repeat, and why a dimensional change means a new die rather than an adjustment.
Why glue flaps and tucks sit where they do
A folding carton is glued along exactly one seam. Where that seam sits is a manufacturing decision, not an arbitrary one, and it explains several things about how a dieline looks.
The glue flap is placed so the seam falls on a back or side panel rather than the front, because a glued seam shows a faint line and slightly different surface texture. On a carton with a dark solid front panel, a seam there would be visible.

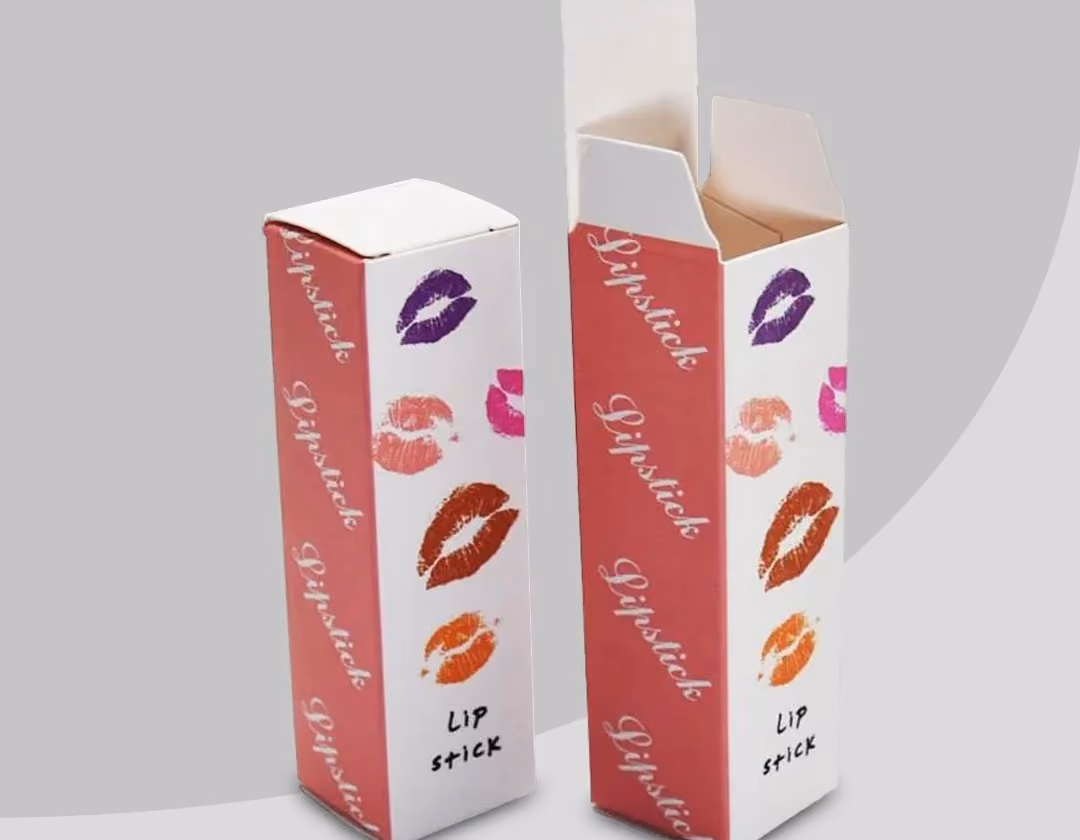

Tuck flaps have a shape, not just a size. The curved shoulder on a tuck is what lets it slide past the panel edge without catching, and the small nick at its base is a friction lock that stops it working open in transit. Straightening either of those, which designers sometimes do to tidy a drawing, produces a carton that will not stay shut.
Dust flaps, the smaller flaps either side of a tuck, close first and stop product escaping through the corners. They look redundant on a drawing and are not.
Grain direction, and why it matters
Paperboard fibres align during manufacture, which gives the sheet a grain. It affects the finished carton in ways that are invisible on a drawing.
- Board folds cleanly along the grain and cracks across it, so creases are laid out to run with the grain wherever possible
- A carton creased against the grain shows a rough, feathered fold, most visible on dark or heavily inked panels
- Grain runs the long way on most sheets, which constrains how many cartons fit and therefore the material cost
- A tall narrow carton and a wide flat one from the same sheet may have different grain relationships to their creases
- Coated boards crack more readily across the grain than uncoated, because the coating has no fibre to flex with
- On heavier boards the effect is more pronounced, which is why a 24pt carton is more sensitive to layout than an 18pt one
This is handled by the converter rather than by you, but it explains why a supplier occasionally proposes a slightly different carton proportion: it may be a grain and yield decision rather than a visual one.
Working with a dieline in your design file
Six rules that prevent almost every dieline problem we see.
Place it on a locked layer
Import the dieline, lock the layer, and never move or scale it. A dieline scaled to fit a canvas produces a carton that is the wrong size.
Design under it, not over it
Keep the dieline as the top visible layer while working so you can always see where panels break, then hide it for output.
Extend artwork into the bleed
Any colour or image reaching an edge must continue past the cut line into the bleed area, or a white sliver appears on some units.
Respect the safe area
Live copy, logos and barcodes stay inside it. Cutting and creasing both have real tolerance, and edges drift.
Check panel orientation
Some panels are upside down relative to others in the flat layout. Fold a printed mock-up before approving.
Never redraw it
If the dieline seems wrong, ask rather than redrawing. A redrawn dieline no longer matches the tool that will cut it.
Reading a flat and predicting the folded result
The most reliable way to check a dieline is to print it at 100% on paper, cut it out and fold it. It takes ten minutes and catches errors that no amount of on-screen checking will.
Two things routinely surprise people at that point. Panels that looked adjacent in the flat turn out to be on opposite faces of the finished box. And artwork that appeared correctly oriented is upside down on one panel, because that panel folds under.
A supplier will normally provide a folded 3D preview alongside the flat, which helps. But a physical paper mock-up is still worth doing, particularly on a first project or an unusual construction, because it also tells you whether the proportions feel right in the hand.
When a change needs a new die
Any change to a cut or crease position needs a new die. That includes changing a dimension, adding or moving a window, changing the tab shape on a hanging carton, and switching from a tuck base to a snap-lock.
What does not need a new die: changing the artwork, changing the board weight within a small range, changing the coating, adding or removing foil, and changing the print process. All of those run on the existing tool.
This is why the die line approval is treated as a separate written sign-off from the colour proof. It is the point at which the structure becomes fixed, and the structure is the expensive thing to change. The approval stages of an order set out the sequence around it.
